msw.cu File Reference

Implementation of CUDA-accelerated Most Significant Word finding algorithms. More...

#include <bit>
#include <cstddef>
#include <cstdint>
#include <iostream>
#include <stdio.h>
#include "cuda_utils.cuh"

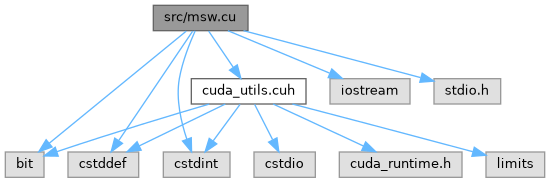

Include dependency graph for msw.cu:

Go to the source code of this file.

Functions
__global__ void	par_sig_sqrt (const uintmax_t *const p1, uintmax_t *p2, uintmax_t *sig_out, size_t n)
	CUDA kernel that implements the first phase of the square root decomposition.
__global__ void	naive_leftmost_prisoner (uintmax_t *p, size_t n)
	Parallel kernel to find the leftmost non-zero element in an array.
__global__ void	par_get_section_diff (uintmax_t *tree, uintmax_t *section, size_t n)
	Parallel kernel to identify and record the index of the first non-zero element.
size_t	seq_find_mismatch (const uintmax_t *const arr1, const uintmax_t *const arr2, size_t size)
	Sequential implementation of finding the first mismatching word between two arrays.
size_t	par_find_mismatch (const uintmax_t *const d_a, const uintmax_t *const b, uintmax_t *d_large_block, size_t n)
	GPU-accelerated implementation of finding the first mismatching word with pre-allocated memory.
uintmax_t *	alloc_large_block_to_device (size_t n)
	Allocates a large block of device memory for parallel mismatch operations.
size_t	par_find_mismatch (const uintmax_t *const a, const uintmax_t *const b, size_t n)
	Convenience wrapper for GPU-accelerated mismatch finding.

Detailed Description

Implementation of CUDA-accelerated Most Significant Word finding algorithms.

This file implements a parallel algorithm for finding the first mismatching word between two arrays using a two-phase square root decomposition approach:

Phase 1: Divide the arrays into sqrt(n) chunks and identify which chunk contains the first mismatch. Phase 2: Within the identified chunk, find the exact position of the first mismatch.

The implementation uses three key CUDA kernels:

• par_sig_sqrt: Computes XOR between corresponding elements and marks chunks with mismatches
• naive_leftmost_prisoner: Uses a tournament-style approach to find the leftmost non-zero element
• par_get_section_diff: Identifies and records the index of the first non-zero element

This algorithm achieves O(n) work with O(1) span when sufficient threads are available, making it highly efficient for large arrays on GPU hardware.

See also

msw.cuh

cuda_utils.cuh

Definition in file msw.cu.

Function Documentation

alloc_large_block_to_device()

uintmax_t * alloc_large_block_to_device

(

size_t

n

)

Allocates a large block of device memory for parallel mismatch operations.

Calculates the required memory size based on the input size n and allocates a contiguous block of memory on the device. The size is calculated to accommodate:

• A copy of the second array (n elements)
• Storage for the result (1 element)
• The signature array for chunk identification (sqrt(n) elements)
• An extra element for safety (1 element)

Parameters

n	Number of elements to be processed

Returns

Pointer to allocated device memory of size n + sqrt(n-1) + 2

Definition at line 256 of file msw.cu.

{
    size_t large_block_size = n + std::sqrt(n - 1) + 2;

    return alloc_to_device<uintmax_t>(large_block_size);
}

naive_leftmost_prisoner()

__global__ void naive_leftmost_prisoner	(	uintmax_t *	p,
		size_t	n
	)

Parallel kernel to find the leftmost non-zero element in an array.

Uses a tournament-style approach where each pair of elements is compared, and if a left element (lower index) is non-zero, it "eliminates" the right element by setting it to zero. After all comparisons, only the leftmost non-zero element remains. This kernel achieves O(n²) work in O(1) span when sufficient threads are available.

The algorithm distributes all n-choose-2 pairwise comparisons across available threads.

Definition at line 68 of file msw.cu.

{
    // Calculate total number of pairwise comparisons needed
    size_t n_choose_2 = n * (n - 1) / 2;

    // Distribute comparisons evenly across threads
    size_t num_computations = (n_choose_2 - 1) / get_num_threads() + 1;

    // Calculate starting comparison index for this thread
    auto i = get_tid() * num_computations;

    // Convert linear index i to pair (a,b) using inverse of triangular number formula
    // This maps from a 1D index to a 2D comparison between elements at positions a and b
    size_t b = (1 + std::sqrt(1 + 8 * i)) / 2;  // Row index calculation
    size_t a = i - b * (b - 1) / 2;             // Column index calculation

    // Process this thread's allocated comparisons
    while (num_computations-- && b < n)
    {
        // If the left element is non-zero, eliminate the right element
        if (p[a]) p[b] = 0;

        // Move to next comparison pair
        ++a;

        // If we reach the end of a row, move to the next row
        if (a == b)
        {
            a = 0;  // Start at the leftmost element
            ++b;    // Move to the next row
        }
    }
}

par_find_mismatch() [1/2]

size_t par_find_mismatch	(	const uintmax_t *const	a,
		const uintmax_t *const	b,
		size_t	n
	)

Convenience wrapper for GPU-accelerated mismatch finding.

GPU-accelerated implementation of finding the first mismatching word.

This function handles all the device memory management, including:

• Allocating device memory for both arrays
• Copying the first array to the device
• Calling the core implementation
• Freeing all allocated device memory

This provides a simpler interface for callers who don't need to manage device memory themselves or reuse memory across multiple calls.

Parameters

a	First input array (host memory)
b	Second input array (host memory)
n	Number of elements in the arrays

Returns

Index of the first mismatching word, or n if arrays are identical

Definition at line 280 of file msw.cu.

{
    uintmax_t *d_a = copy_to_device(a, n);
    uintmax_t *d_large_block = alloc_large_block_to_device(n);

    size_t result = par_find_mismatch(d_a, b, d_large_block, n);

    device_free(d_a);
    device_free(d_large_block);

    return result;
}

par_find_mismatch() [2/2]

size_t par_find_mismatch	(	const uintmax_t *const	d_a,
		const uintmax_t *const	b,
		uintmax_t *	d_large_block,
		size_t	n
	)

GPU-accelerated implementation of finding the first mismatching word with pre-allocated memory.

GPU-accelerated mismatch finding with pre-allocated device memory.

This function implements a two-phase square root decomposition algorithm:

1. Divide the arrays into sqrt(n) chunks and identify which chunk contains the first mismatch
2. Within the identified chunk, find the exact position of the first mismatch

The algorithm uses three CUDA kernels:

• par_sig_sqrt: Marks chunks containing mismatches
• naive_leftmost_prisoner: Eliminates all but the leftmost non-zero element
• par_get_section_diff: Identifies the index of the first non-zero element

Time complexity: O(n) work with O(1) span when sufficient threads are available Space complexity: O(n + sqrt(n)) for temporary storage

Precondition

d_a is already populated on the device

d_large_block has size at least n + sqrt(n) + 2 to hold b and signature arrays

Parameters

d_a	First input array (already in device memory)
b	Second input array (host memory, will be copied to device)
d_large_block	Pre-allocated device memory block for temporary storage
n	Number of elements in the arrays

Returns

Index of the first mismatching word, or n if arrays are identical

Definition at line 178 of file msw.cu.

{
    // Copy the second array to device memory using pre-allocated buffer
    uintmax_t *d_b = copy_to_device(d_large_block, b, n);

    // Set up memory pointers within the large block:
    // - d_section: single value to store result
    // - d_sqrt: array of size sqrt(n) to track which chunks have mismatches
    uintmax_t *d_section = d_b + n;
    uintmax_t *d_sqrt = d_section + 1;
    size_t num_sqrt = std::sqrt(n - 1) + 1;  // Calculate number of sqrt-sized chunks

    // Initialize the section result to max value (no match found yet)
    memset_within_device(d_section, 1, 0xFF);

    // Initialize the sqrt array to zeros (no mismatches found yet)
    memset_within_device(d_sqrt, num_sqrt, 0);

    // PHASE 1: Find which sqrt(n)-sized chunk has the first mismatch
    // For each element, compute XOR of the two arrays and mark its chunk in d_sqrt if mismatch
    par_sig_sqrt<<<BLOCKS, THREADS>>>(d_a, d_b, d_sqrt, n);

    // Find the first non-zero chunk (chunk with a mismatch) in parallel
    naive_leftmost_prisoner<<<BLOCKS, THREADS>>>(d_sqrt, num_sqrt);

    // Extract the index of the first chunk with a mismatch
    par_get_section_diff<<<BLOCKS, THREADS>>>(d_sqrt, d_section, num_sqrt);

    // Copy the result back to host memory
    uintmax_t *h_section = copy_from_device(d_section, 1);
    size_t section = *h_section;

    // If no mismatch found, return n (indicating arrays are identical)
    if (section == std::numeric_limits<uintmax_t>::max())
    {
        delete[] h_section;
        return n;
    }

    // Reset the section result for the second phase
    memset_within_device(d_section, 1, 0xFF);

    // PHASE 2: Find the exact mismatch position within the identified chunk
    // Calculate the offset and size of the identified chunk
    size_t section_offset = section * num_sqrt;
    size_t section_end = std::min(n, section_offset + num_sqrt);
    uintmax_t *d_sig_section = d_b + section_offset;
    size_t num_words = section_end - section_offset;

    // Find the first non-zero word within the chunk (containing XOR results)
    naive_leftmost_prisoner<<<BLOCKS, THREADS>>>(d_sig_section, num_words);

    // Extract the index of the first mismatching word within the chunk
    par_get_section_diff<<<BLOCKS, THREADS>>>(d_sig_section, d_section, num_words);

    // Copy the result back to host memory
    h_section = copy_from_device(d_section, 1);
    size_t result = *h_section;

    delete[] h_section;

    // Return the global index of the first mismatch (chunk offset + position within chunk)
    return section_offset + result;
}

par_get_section_diff()

__global__ void par_get_section_diff	(	uintmax_t *	tree,
		uintmax_t *	section,
		size_t	n
	)

Parallel kernel to identify and record the index of the first non-zero element.

After the naive_leftmost_prisoner kernel has eliminated all non-leftmost elements, this kernel scans the array to find the remaining non-zero element and records its index. Multiple threads may write to the same location, but they'll all write the same value since only one element should remain non-zero after the elimination process.

This kernel is used in both phases of the square root algorithm:

1. To find which sqrt(n)-sized chunk contains the first mismatch
2. To find the exact position within that chunk

Definition at line 113 of file msw.cu.

{
    // Each thread checks a subset of elements
    for (auto i = get_tid(); i < n; i += get_num_threads())
    {
        // If we find a non-zero element, it must be the leftmost one after elimination
        if (tree[i] != 0)
        {
            *section = i;  // Record its index as the result
        }
    }
}

par_sig_sqrt()

__global__ void par_sig_sqrt	(	const uintmax_t *const	p1,
		uintmax_t *	p2,
		uintmax_t *	sig_out,
		size_t	n
	)

CUDA kernel that implements the first phase of the square root decomposition.

This kernel performs two critical operations:

1. Computes the XOR (as inequality check) between corresponding elements of two arrays
2. Maps each mismatch to its respective sqrt(n)-sized chunk in the signature array

Each thread processes multiple elements based on its thread ID. When a mismatch is found, the corresponding chunk in sig_out is marked with a 1.

Definition at line 41 of file msw.cu.

                                                                                                      {
    // Calculate number of chunks, each of size sqrt(n)
    size_t num_sqrt = std::sqrt(n - 1) + 1;

    // Each thread processes elements at positions (threadIdx + k*blockDim*gridDim)
    for (auto i = get_tid(); i < n; i += get_num_threads())
    {
        // Store XOR result in p2 - non-zero values indicate mismatches
        p2[i] = p1[i] != p2[i];

        // If there's a mismatch, mark its chunk in the signature array
        if (p2[i] != 0)
        {
            sig_out[i / num_sqrt] = 1;
        }
    }
}

seq_find_mismatch()

size_t seq_find_mismatch	(	const uintmax_t *const	arr1,
		const uintmax_t *const	arr2,
		size_t	size
	)

Sequential implementation of finding the first mismatching word between two arrays.

This is a simple linear scan through both arrays, comparing corresponding elements until a mismatch is found. This function serves as a baseline for comparison with the parallel implementation and is used for validation.

Time complexity: O(n) in the worst case Space complexity: O(1)

Parameters

arr1	First input array
arr2	Second input array
size	Number of elements in the arrays

Returns

Index of the first mismatching word, or size if arrays are identical

Definition at line 141 of file msw.cu.

{
    for (size_t i = 0; i < size; ++i)
    {
        if (arr1[i] != arr2[i])
        {
            return i;
        }
    }

    return size;
}
